Made to Measure Drayton Arch Top Estate Gate

  • Made to Measure Drayton Arch Top Estate Gate
  • Brand: BIC
  • Product Code: BIC601M
  • SKU:
  • Availability: In Stock
    Delivery: Direct from the factory in 2 to 4 weeks
  • £772.00

Made To MeasureMade To Measure

To calculate your price, click here and enter your dimensions opposite.


Free Delivery*

Share



The Drayton Arch Top Estate Gates are available in a range of off-the-shelf sizes. If however you require a bespoke size, a made to measure service is available for these gates and available to order online. In order to ensure you order the correct size gate, please read the information below and follow the simple instructions for an instant quote.

Firstly, click the link below to look at the standard Drayton Arch Top Estate Gates and see if the standard sizes will fit your opening. If they won’t and you need made to measure gates, read on to work out what size you need to order.

Drayton Arch Top Estate Gates


HOW TO ORDER MADE TO MEASURE GATES

Click on the ‘Made to Measure’ button with the tape measure, this will open a screen for you to enter your sizes for an instant quote.

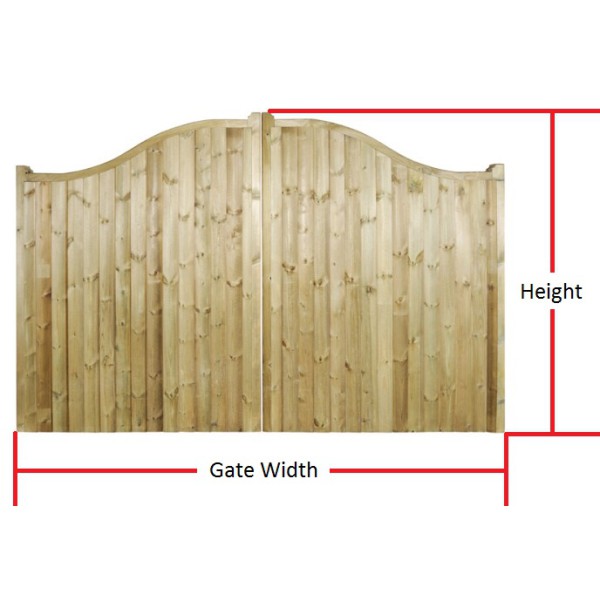

STEP 1 – Enter the Gate Width

The gate width is the total physical width of the pair of gates from side to side

NOTES: Wooden gates look best when fitted virtually flush to the posts but you must allow an expansion gap of at least 20mm for a pair of gates as wood will expand and contract with the changes in temperature and humidity. Therefore the width of the double gates you order should be at least 20mm less than your gap to allow for expansion of the timber.

STEP 2 – Enter the Gate Height

The gate height is the distance from the bottom of the frame to the highest point in the gate. The gate height is the physical height of the gate itself and does not include any ground clearance, which would typically be 25mm (1") or more if your ground slopes.

NOTES: If your posts are 2000mm above ground and you want the top of the gates to be level with the top of the post, you should enter a height of 1975mm or less depending on how much ground clearance you will need.

Once you have entered your measurements, your made to measure quotation will be displayed. This is the total price, including VAT and delivery (excluding Highlands). When you are ready, click "Add to Basket" and go through the checkout to complete your purchase.

If you are unsure and would prefer to discuss your requirements, please contact us for advice.

Contact Us

Recommended Accessories

Fittings: The Drayton gates are not supplied with any fittings; however an optional fittings pack is available which includes a drop bolt plus the correct size hinges and latch for this weight of gate. The fittings we have available are galvanised to prevent rust. Each gate has three horizontal braces on the back. Hinges should be fitted to the top and bottom brace.

Wooden Posts: Posts are recommended for use with the wooden gates. For a long maintenance free life, pressure treated gate posts are recommended however any wooden post in a good solid condition, that is either wall mounted or concreted into the ground would be suitable. If concreting into the ground, the posts should be dug in by approximately 60cm.

General Information

Construction: The gate is constructed from smooth planed Scandinavian Redwood. The front boards are a tongue and groove construction that creates a solid gate with no gaps for maximum privacy. The back of the gate has vertical, horizontal and diagonal heavy duty braces for maximum strength and rigidity.

Finish: The Drayton gates are supplied pressure treated which leaves the wood with a temporary green tint. If left to weather, the wood will fade to a silvery grey colour; however you can change the colour straight away by staining the wood using Protek Timber Eco Shield, or it can be painted after it has been allowed to weather for at least 3 months using a product compatible for use with pressure treated timber.

Specification

SIDE FRAME70mm x 70mm
BACK BRACING70mm x 54mm and 44mm x 44mm
TONGUE & GROOVE BOARDS95mm x 14mm
JOINTSMortise and tenon
WOOD TREATMENTPressure treated

 Direct from the factory in 2 to 4 weeks
 Delivery to UK mainland only. Surcharges apply to Highlands.

 FREE
 Surcharge applies for Highlands and Islands
 Not available for delivery
