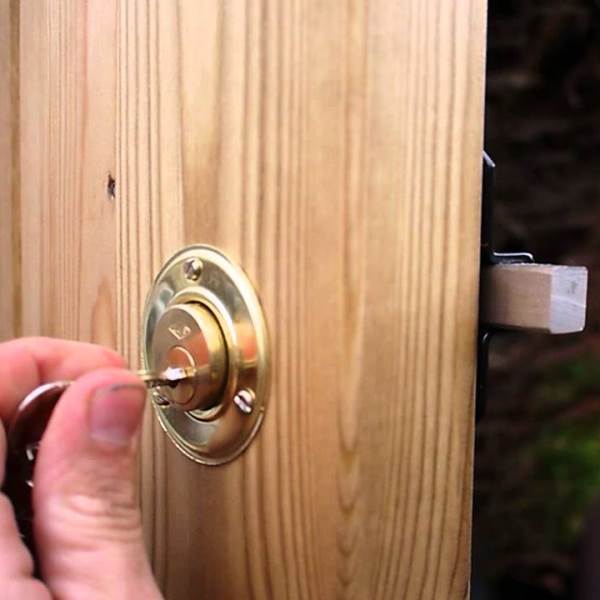

The Cays 2.75" Throw Gate Lock from Eliza Tinsley is designed for use with wooden gates with frames between 50mm and 70mm thick. The lock housing plate is screwed to the frame at the back of the gate and once installed, allows the gate to be locked with a key from the front or back of the gate. The nickel plated bolt is 70mm long to ensure it remains in its keep should somebody try to put the gate open. Installation is straightforward and all fixings to attach the lock to the gate are supplied. A 25mm diameter hole will need to be drilled through the gate for the key barrel to go through. Three keys supplied.

Dimensions

Plate Height: 80mm (3.15")
Plate Width: 105mm (4.15")
Bolt Length: 70mm (2.75")
