Made to Measure Quorn Tall Single Gate

  • Made to Measure Quorn Tall Single Gate
  • Brand: BIC
  • Product Code: BIC203M
  • SKU:
  • Availability: In Stock
    Delivery: Direct from the factory in 3 to 5 weeks
  • £250.00

Made To MeasureMade To Measure

To calculate your price, click here and enter your dimensions opposite.

Free Delivery*


The Quorn Tall Single Gate is available in a range of off-the-shelf sizes. If however you require a bespoke size, a made to measure service is available for this gate and available to order online. In order to ensure you order the correct size gate, please read the information below and follow the simple instructions for an instant quote.

Firstly, click the link below to look at the standard Quorn Tall Single Gate and see if the standard sizes will fit your opening. If they won’t and you need a made to measure gate, read on to work out what size you need to order.

Quorn Tall Single Gate


Click on the ‘Made to Measure’ button with the tape measure, this will open a screen for you to enter your sizes for an instant quote.

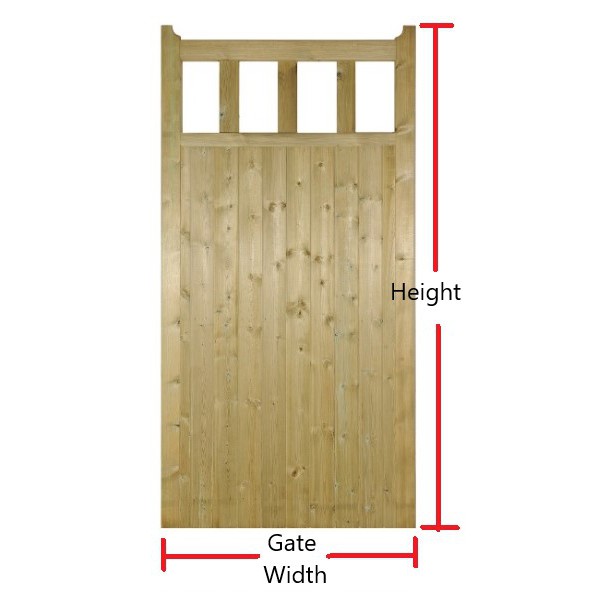

STEP 1 – Enter the Gate Width

The gate width is the physical width of the gate from frameto frame.

NOTES: Wooden gateslook best when fitted virtually flush to the posts but you must allow anexpansion gap of at least 10mm for single gates (20mm for double gates) as woodwill expand and contract with the changes in temperature and humidity.Therefore the width of gate you order should be at least 10mm less than yourgap to allow for expansion of the timber.

STEP 2 – Enter the Gate Height

The gate height is the distance from the bottom of the frameto the highest point in the gate. The gate height is the physical height of thegate itself and does not include any ground clearance, which would typically be25mm (1") or more if your ground slopes.

NOTES: If your posts are 2000mm above ground and you want the top of the gate to be level with the top of the post, you should enter a height of 1975mm or less depending on how much ground clearance you will need.

Once you have entered your measurements, your made to measure quotation will be displayed. This is the total price, including VAT and delivery (excluding Highlands). When you are ready, click "Add to Basket" and go through the checkout to complete your purchase.

If you are unsure and would prefer to discuss your requirements, please contact us for advice.

Contact Us

Recommended Accessories

Fittings. The Quorn gates are not supplied with any fittings; however an optional fittings pack is available which includes the correct size hinges and latch for this type of gate. The fittings we have available are galvanised to prevent rust. Please note the gate fittings require a flat vertical surface for installation. Hinges should be fitted to the second and fourth brace.

Wooden Posts. Posts are recommended for use with the wooden gates. For a long maintenance free life, pressure treated gate posts are recommended however any wooden post in a good solid condition, that is either wall mounted or concreted into the ground would be suitable. If concreting into the ground, the posts should be dug in by approximately 60cm.

General Information

Construction: The gate is constructed from smooth planed Scandinavian Redwood. The front boards are a tongue and groove construction that creates a solid gate with no gaps for maximum privacy. The back of the gate has vertical, horizontal and diagonal heavy duty braces for maximum strength and rigidity.

Finish: The Quorn gates are supplied pressure treated which leaves the wood with a temporary green tint. If left to weather, the wood will fade to a silvery grey colour; however you can change the colour straight away by staining the wood using Protek Timber Eco Shield, or it can be painted after it has been allowed to weather for at least 3 months using a product compatible for use with pressure treated timber.


Side Frame

70mm x 70mm

Rear Bracing

70mmx 54mm & 44mm x 44mm


Mortice & Tenon

Tongue & Groove

95mm x 14mm


Pressure Treated

 Direct from the factory in 3 to 5 weeks
 Delivery to UK mainland only. Surcharges apply to Highlands.

 Surcharge applies for Highlands and Islands
 Not available for delivery
