Made to Measure Edinburgh Tall Double Gates
- Brand: BIC
- Product Code: BIC024M
- Availability: In Stock
If the standard sizes available for the Edinburgh Tall Double Gates are not going to fit your opening, a made to measure service is available and can be ordered online. Please ensure you read the information below about how to work out the size you need to order and then follow the simple steps detailed below to place your order.
How to work out what size to order
For the width, measure the gap you have between your walls or posts. If you are replacing an existing gate, do not measure the gate itself as this will not take into account the space for the hinges and latch that are supplied with your gate.
For example: If the gap you have is 3000mm and you do not need posts, the width you should specify is 3000mm. If you do require posts, the measurement you need to specify is the gap between your posts. So if you have a 3000mm gap and need to install 2 x 70mm posts, the gap width for your gate should be entered as 2860mm.
Measure the height of gate you require, from the bottom of the frame to the highest point in the gate. Remember to allow for ground clearance, typically 50mm (2") or more if your ground slopes.

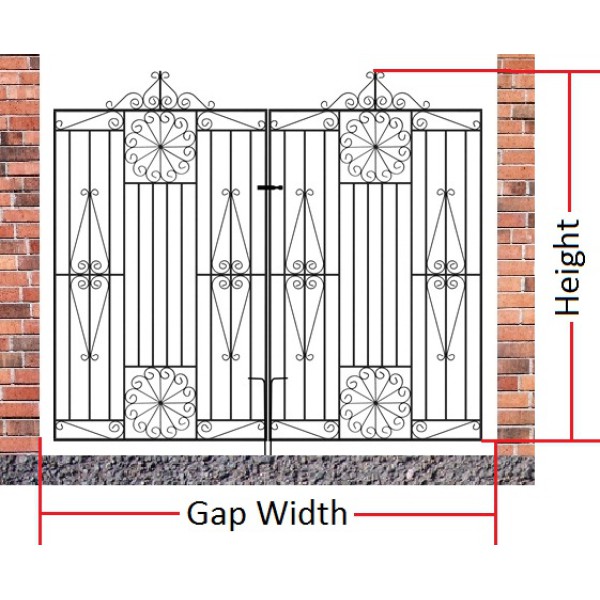

Refer to the diagram above for an illustration of the measurements you need or contact us if you are unsure and one of our team will be happy to help you.
How to order your made to measure gate
Step 1. Enter the gap width in millimetres or inches. Eg. If your gap between walls or posts is 3000mm, enter "3000" in the box.
Step 2. Enter the gate height measurement in millimetres or inches. Eg. If your overall gate height is 2000mm, enter "2000" in the box
Step 3. Made to measure 70mm square gate posts are available for £60 each. Select the number you require.
The price of your made to measure gate will be displayed as you enter your measurements. This price is the total price, including VAT and delivery (excluding Highlands & Islands). When you are ready, click "Add to Basket" and go through the checkout to complete your purchase
If the size of gate you require is smaller or larger than the minimum and maximum measurements shown in the illustration above, please contact us with your measurements and if we can make it, we will be happy to provide you with a quotation.
Fittings. The Edinburgh Tall Double Gates are supplied with hinges, latch and two drop bolts. Self tapping screws are also included.
Opening Directions. The Edinburgh Tall Double Gates can open in both directions. The latch is fitted to the right gate when viewed from the road.
Square Steel Posts. If you are installing directly onto brickwork, due to the weight of the gates, care should be taken to ensure the brickwork is strong enough to support them. Steel posts which are concreted into the ground are recommended to avoid damage to brickwork. Please note that the hinges require a flat vertical surface for installation.
Finish. The made to measure Edinburgh Tall Double Gates are supplied dipped in a black primer ready for you to paint with a top coat in the colour of your choice. We recommend Hammerite but any exterior metal paint can be applied. An optional zinc plated & powder coated finish is available at extra cost, please contact us for a quote before ordering.
|FRAME||30mm x 10mm|
|INFILL BARS||12mm Diameter|
|WIDTH TOLERANCE||+50mm / -10mm|
|3 to 4 weeks.|
|Delivery charges apply to Highlands & Islands.|
Surcharge applies for Highlands and Islands
