Made to Measure Edinburgh Double Gates

  • Made to Measure Edinburgh Double Gates
  • Brand: BIC
  • Product Code: BIC023M
  • SKU:
  • Availability: In Stock
  • £293.00

  • Made To MeasureMade To Measure

    To calculate your price, click here and enter your dimensions opposite.

    Free Delivery*


The Edinburgh Double Gates are available in a range of off-the-shelf sizes. If however you require a bespoke size, a made to measure service is available for this gate and available to order online. In order to ensure you order the correct size gate, please read the information below and follow the simple instructions for an instant quote.

Firstly, click the link below to look at the standard Edinburgh Double Gates and see if the standard sizes will fit your opening. If they won’t and you need a made to measure gate, read on to work out what size you need to order.

Edinburgh Double Gates


Click on the ‘Made to Measure’ button with the tape measure, this will open screen for you to enter your sizes for an instant quote.

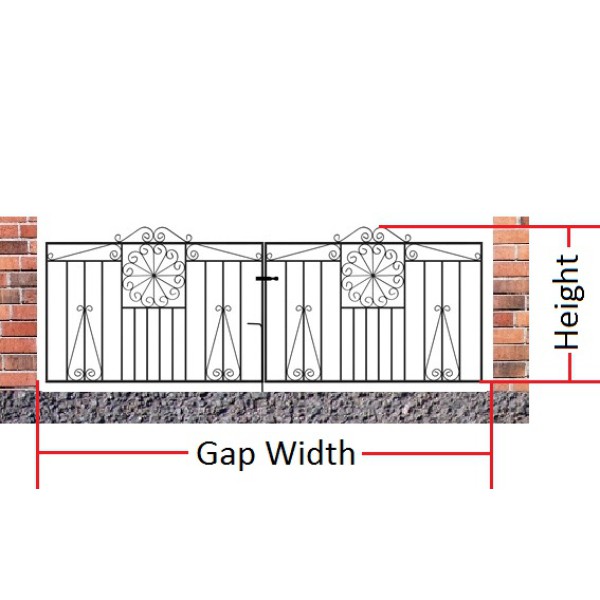

STEP 1 – Enter the Gap Width

The gap width is the distance between your walls or posts. If you are replacing an existing gate, do not measure the gate itself as this will not take into account the space for the hinges and latch that are supplied with your gate.

Example: If you have a gap of 3000mm and you do not need posts, the width you should enter is 3000mm. If you need to install posts, the posts for this gate are 70mm wide each, so the remaining gap for the gate will be 2860mm, this is the measurement you should enter.

STEP 2 – Enter the Gate Height

The gate height is the distance from the bottom of the frame to the highest point in the gate. The gate height is the physical height of the gate itself and does not include any ground clearance, which would typically be 50mm (2") or more if your ground slopes.

Example: If you have brick pillars that are 1000mm tall and you want the top of the gate to be level with the top of the pillar, you should enter a height of 950mm, leaving you with 50mm (2”) of ground clearance.

Once you have entered your measurements, your made to measure quotation will be displayed. This is the total price, including VAT and delivery (excluding Highlands & Islands). When you are ready, click "Add to Basket" and go through the checkout to complete your purchase.

If you are unsure and would prefer to discuss your requirements, please contact us for advice.

Contact Us

Recommended Accessories

Gate Posts: Posts are available if you do not have walls or posts in place on which to hang the gate, and are recommended to avoid causing damage to the brickwork. If you are installing onto a brick pillar, it must be flat and vertical and strong enough to support the weight of the gate. Please note the gate fittings require a flat vertical surface for installation.

General Information

Fittings: The Edinburgh Double Gates are supplied with hinges, latch and one drop bolt.

Opening Direction: The gates can opening in both directions. When facing the front of the gates, the latch is fitted to the right gate. If you require any alterations to this, please let us know.

Finish: The made to measure gates are supplied dipped in a black primer ready for you to paint with a top coat in the colour of your choice. We recommend Hammerite but any exterior metal paint can be applied. An optional zinc plated & powder coated finish is available at extra cost, please contact us for a quote before ordering.



25mm x 10mm

Infill Bars

10mm Diameter Solid Rods

Opening Direction

Universal (can open in both directions)


Available on request

Hinges & Latch & Drop Bolt


Width Adjustment

+80mm / -10mm


Black Primed

 4 to 6 weeks
 Delivery charges apply to Highlands & Islands.

 Surcharge applies for Highlands and Islands
