Made to Measure Corfe Tall Double Gate
- Brand: BIC
- Product Code: BIC063M
- Availability: In Stock
The Corfe Tall Double Gates are available in a range of off-the-shelf sizes. If however you require a bespoke size, a made to measure service is available for this gate and available to order online. In order to ensure you order the correct size gate, please read the information below and follow the simple instructions for an instant quote.
Firstly, click the link below to look at the standard Corfe Tall Double Gates and see if the standard sizes will fit your opening. If they won’t and you need a made to measure gate, read on to work out what size you need to order.
HOW TO ORDER A MADE TO MEASURE GATE
Click on the ‘Made to Measure’ button with the tape measure, this will open screen for you to enter your sizes for an instant quote.

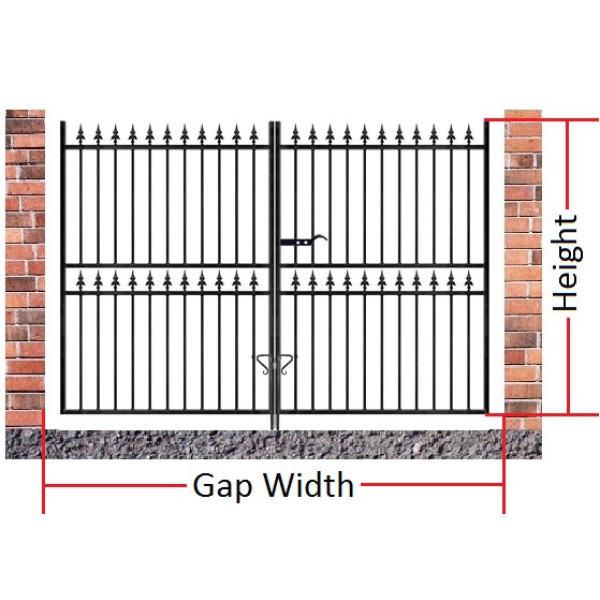

STEP 1 – Enter the Gap Width
The gap width is the distance between your walls or posts. If you are replacing an existing gate, do not measure the gate itself as this will not take into account the space for the hinges and latch that are supplied with your gate.
Example: If you have a gap of 3000mm and you do not need posts, the width you should enter is 3000mm. If you need to install posts, the posts for this gate are 100mm wide each, so the remaining gap for the gate will be 2800mm, this is the measurement you should enter.
STEP 2 – Enter the Gate Height
The gate height is the distance from the bottom of the frame to the highest point in the gate. The gate height is the physical height of the gate itself and does not include any ground clearance, which would typically be 50mm (2") or more if your ground slopes.
Example: If you have brick pillars that are 2000mm tall and you want the top of the gate to be level with the top of the pillar, you should enter a height of 1950mm, leaving you with 50mm (2”) of ground clearance.
Once you have entered your measurements, your made to measure quotation will be displayed. This is the total price, including VAT and delivery (excluding Highlands & Islands). When you are ready, click "Add to Basket" and go through the checkout to complete your purchase.
If you are unsure and would prefer to discuss your requirements, please contact us for advice.
Gate Posts: Posts are available if you do not have walls or posts in place on which to hang the gate, and are recommended to avoid causing damage to the brickwork. If you are installing onto a brick pillar, it must be flat and vertical and strong enough to support the weight of the gate. Please note the gate fittings require a flat vertical surface for installation.
Fittings: The Corfe Tall Double Gates are supplied with hinges, latch and two drop bolts.
Opening Direction: The gates can opening in both directions. When facing the front of the gates, the latch is fitted to the right gate. If you require any alterations to this, please let us know.
Finish: The gates are supplied dipped in a black primer ready for you to paint with a top coat in the colour of your choice. We recommend Hammerite but any exterior metal paint can be applied. An optional zinc plated & powder coated finish is available at extra cost, please contact us for a quote before ordering.
25mm x 25mm Hollow Box Section (Sides & Base)
16mm Diameter Solid Rods
|Universal (can open in both directions)|
Yes - Can be padlocked (not supplied)
Hinges & Latch & Drop Bolts
+50mm / -15mm
|3 to 4 weeks.|
|Delivery charges apply to Highlands & Islands.|
Surcharge applies for Highlands and Islands
